Technical Summary#

What is ripple1d?#

ripple1d is a Python utility that repurposes HEC-RAS models for use in the production of Flood Inundation Maps (FIMs) and synthetic rating curves (SRCs) to support near-real-time flood forecasting within NOAA’s National Water Model (NWM). With the utility, HEC-RAS models can be broken up into smaller sub models for each NWM reach within the modeled domain. Sub models may then be used to develop reach-scale SRCs and FIM.

ripple1d currently includes functions to:

  • Export HEC-RAS model geometry and metadata from proprietary HEC formats to geopackages and SpatioTemporal Asset Catalog (STAC) items;

  • Associate HEC-RAS model components (e.g. cross sections, structures, etc) with NWM reaches;

  • Create NWM reach-specific HEC-RAS models;

  • Run HEC-RAS models for a range of hydraulic conditions;

  • Generate reach-scale SRCs;

  • Map inundation extents and depth grids; and

  • Incorporate updated topographic data in mapping to reflect current site conditions.

Why use ripple1d?#

While novel methods for mapping inundation extents across broad spatial scales are under active development, HEC-RAS models remain the industry standard, and large collections of engineer-certified HEC-RAS models have been developed in recent years in support of Federal Emergency Management Agency (FEMA) Digital Flood Insurance Rate Map (DFIRM) and Base Level Engineering (BLE) initiatives. ripple1d provides utilities to leverage these large catalogs in an operational flood forecasting setting by aligning HEC-RAS model domains with forecast domains. Aligning model domains reduces computational overhead and allows models to easily interface with other modules and functions of the NWM.

How ripple1d works#

The following steps outline a typical workflow for setting up a HEC-RAS model for use in FIM and SRC production.

1 - Model identification and data extraction#

(relevant endpoints: ras_to_gpkg)

When ripple1d is presented with a HEC-RAS project folder, it scans the directory for a complete set of HEC-RAS project files. If a valid set is found, ripple1d then exports the spatial extents of the cross-sections, river centerline, structures, and junctions (along with their associated metadata) to a geopackage file.

2 - Model and NWM network conflation#

(relevant endpoints: conflate_model, compute_conflation_metrics)

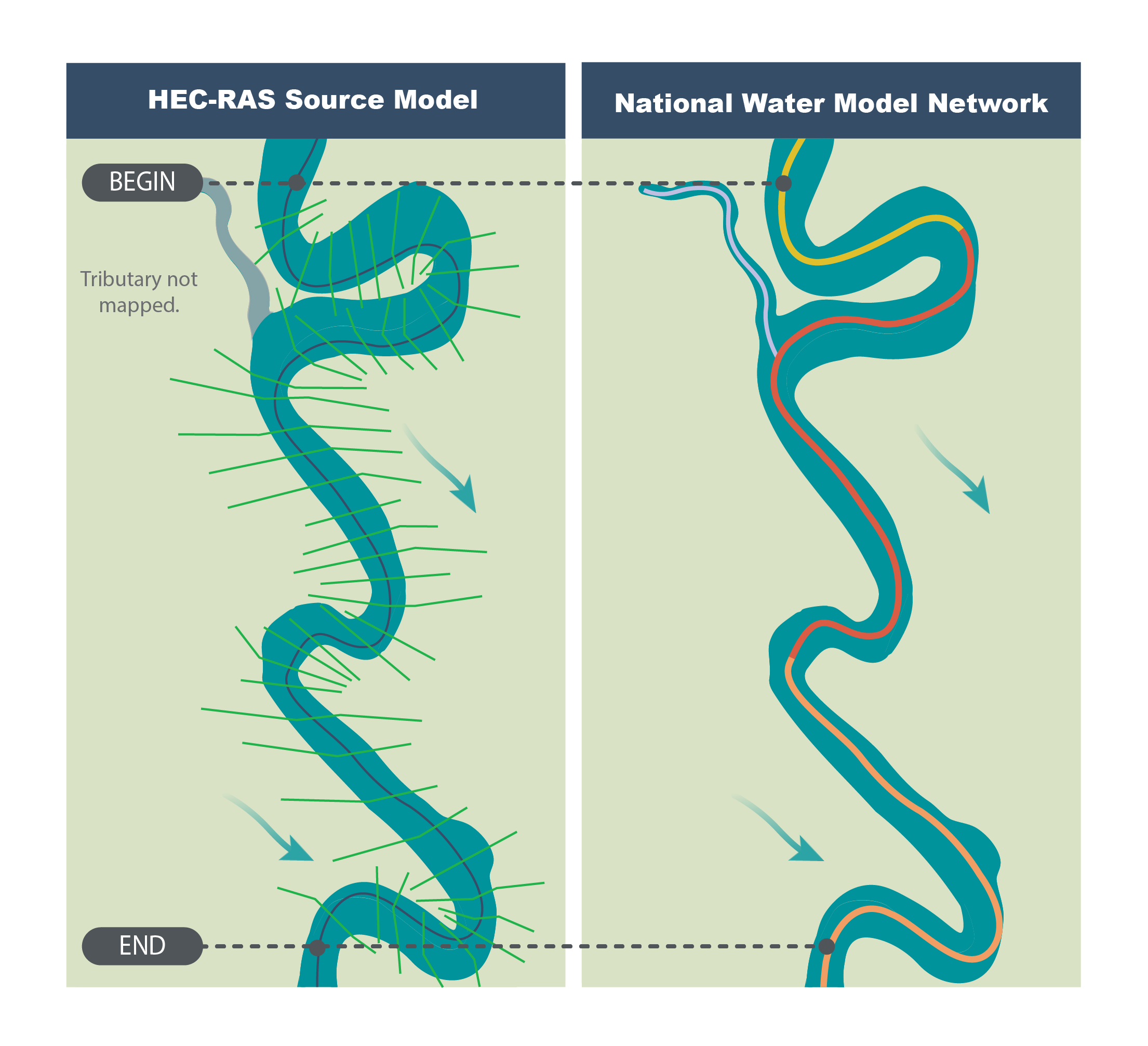

HEC-RAS source model and National Water Model network

The upstream and downstream limits of HEC-RAS models rarely align with those of NWM reaches. Conflating in ripple1d is the process of associating sections of HEC-RAS models with NWM reaches. To make this association, ripple1d selects NWM reaches near the upstream and downstream boundaries of the HEC-RAS model and traverses the NWM network between them, marking all reaches encounters. For each of those NWM reaches, the utility identifies an upstream cross-section as the HEC-RAS cross-section that intersects the reach closest to its upstream end. It identifies a downstream cross-section as the HEC-RAS cross-section directly downstream of the HEC-RAS cross-section that intersects the reach closest to the downstream end. All cross-sections between the upstream and downstream cross-sections are marked as associated with the NWM reach.

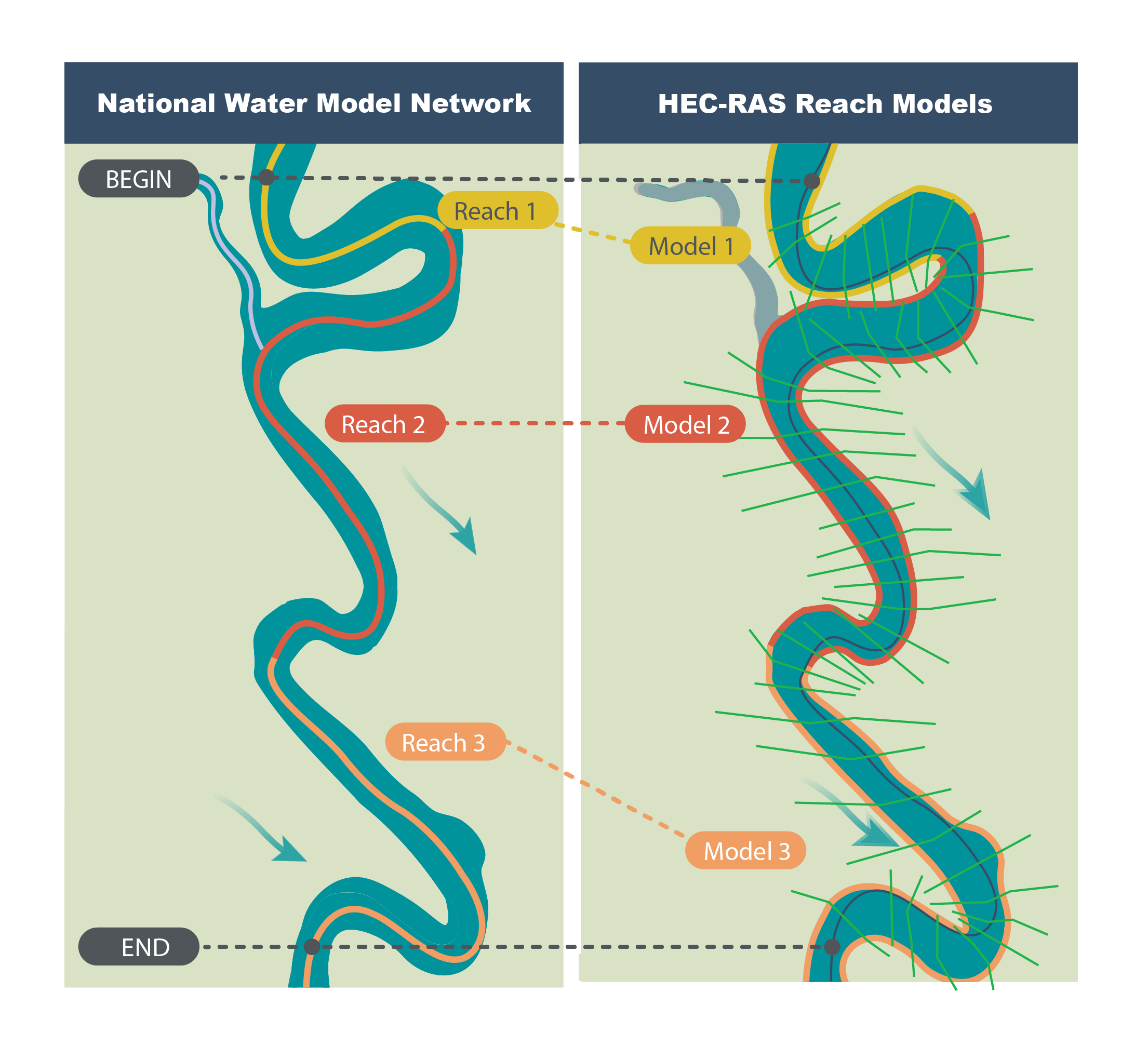

Breaking source model into sub models

As a part of the conflation process, ripple1d records a set of metrics that may be used to assess how well the HEC-RAS model and NWM reaches agree. These metrics are saved in a JSON file within the HEC-RAS model directory, and definitions for each of the JSON fields are provided below.

  • Cross-sectional metrics. These metrics quantify the degree of alignment between the NWM reach centerline and the HEC-RAS model. The metrics below are measured at each HEC-RAS cross-section and summary statistics are reported in the conflation metrics output.

    • centerline_offset measures the straightline distance between RAS centerline and NWM reach line

    • thalweg_offset measures the straightline distance between lowest point along each RAS section and NWM reach line

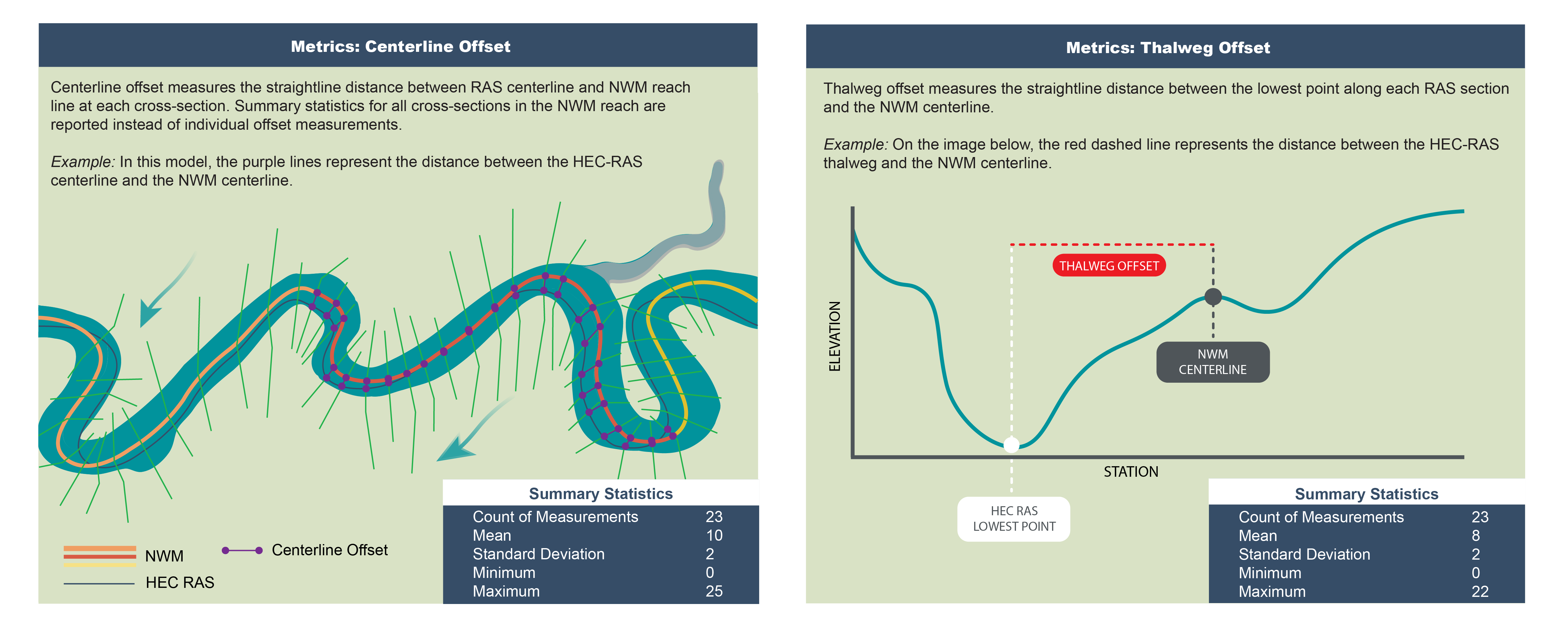

Cross-section conflation metrics

  • Length metrics. These metrics assess centerline length differences between HEC-RAS and the NWM reaches.

    • ras is the distance along the RAS centerline between upstream and downstream cross-section

    • network is the distance along the NWM reach between upstream and downstream cross-section

    • network_to_ras_ratio is the network length divided by ras length

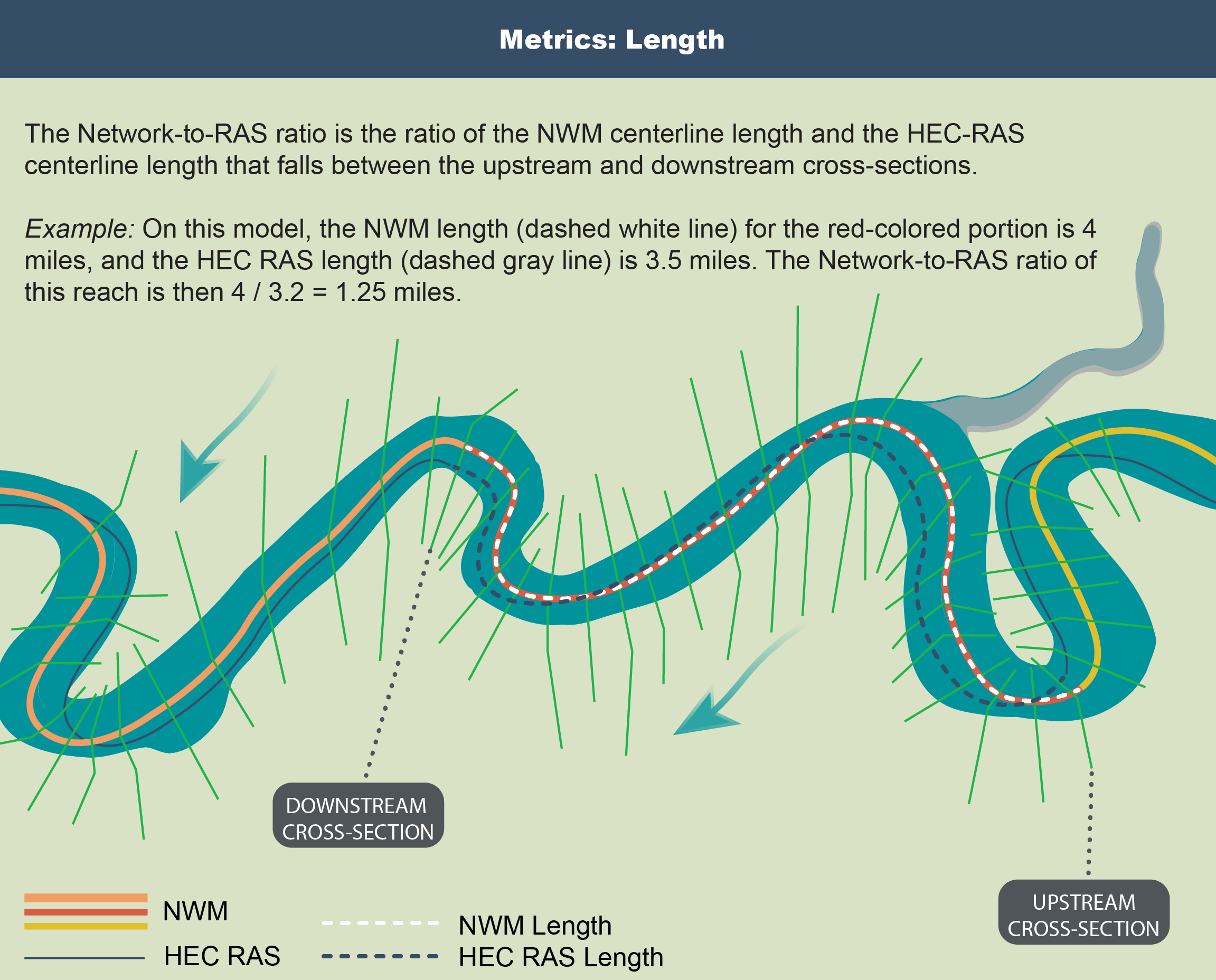

Length conflation metrics

  • Coverage metrics. These metrics quantify the portion of the NWM reach between the upstream and downstream cross-section.

    • start is the ratio of NWM reach length that occurs u/s of the upstream cross-section

    • end is the ratio of NWM reach length that occurs u/s of the downstream cross-section

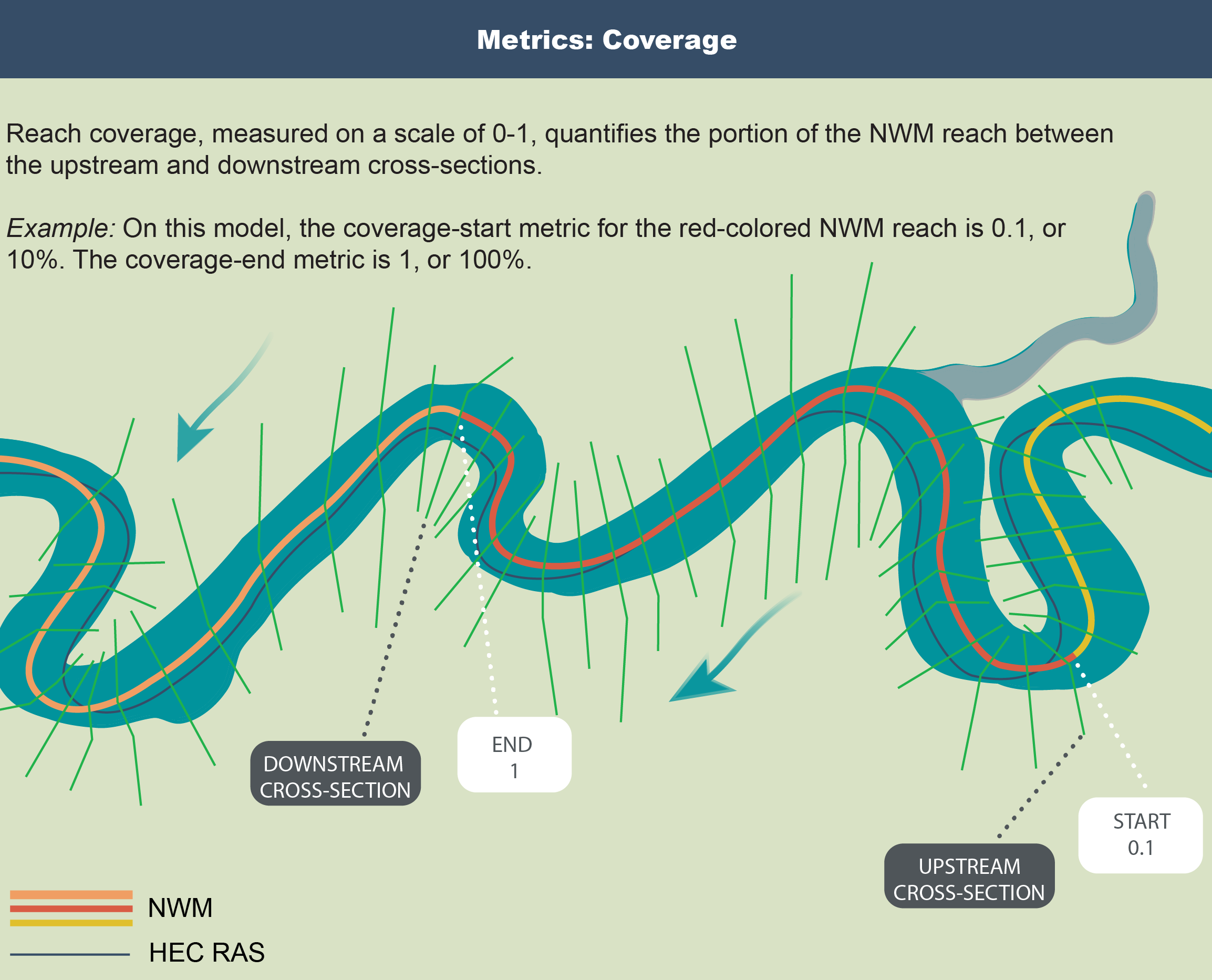

Coverage conflation metrics

3 - Sub model creation#

(relevant endpoints: extract_submodel, create_ras_terrain)

Once NWM reaches have been associated with relevant parts of the HEC-RAS model, a new HEC-RAS sub model specific to each NWM reach will be created. Rippl1d copies geometry between source HEC-RAS model and submodel so that the submodel produces water surface elevation predictions consistent with the original engineer-certified model. For mapping inundation extents, however, ripple1d downloads newer terrain to reflect existing conditions. You can use terrain from any virtual raster source, but by default, ripple1d will download a 1/3 arcsecond DEM from USGS

4 - SRC development and FIM pre-processing#

(relevant endpoints: create_model_run_normal_depth, run_incremental_normal_depth, run_known_wse, create_fim_lib)

Once submodel geometry has been set up, you can run various discharges through the model and record the results. Ripple1d has several tools to develop SRCs for a NWM reach.

  • Initial Normal Depth Run. Discharges ranging from 1.2 times the reach high flow threshold to the reach 1% AEP discharge will be incrementally run through the reach submodel, and their associated flow depths at each cross-section are recorded. If the source model min flow is lower than 1.2 times the high flow threshold or the source model max flow is higher than the 1% AEP discharge, those flow bounds will be used instead

  • Regularized Normal Depth Run. After the initial depth-discharge curve has been established, ripple1d will attempt to generate a new depth-discharge curve at regular depth intervals. Discharges determined by interpolating a regular depth increment along the initial depth-discharge curve will be incrementally run through the model, and the new curve will be recorded.

  • Known Water Surface Elevation Run. An advantage of HEC-RAS over lower-complexity FIM methods is its ability to consider downstream hydraulic conditions. ripple1d pre-processes SRCs for a range of conditions by iterating the downstream boundary condition over a range of water surface elevations.

Ripple1d generates HEC-RAS inundation depth grids for each of the known water surface elevation runs. These grids are cached along with their associated discharges and downstream conditions so that reach-scale FIM may be retrieved as soon as a reach forecast is released.
